Self-Reparing High Speed Doors H.S.D.

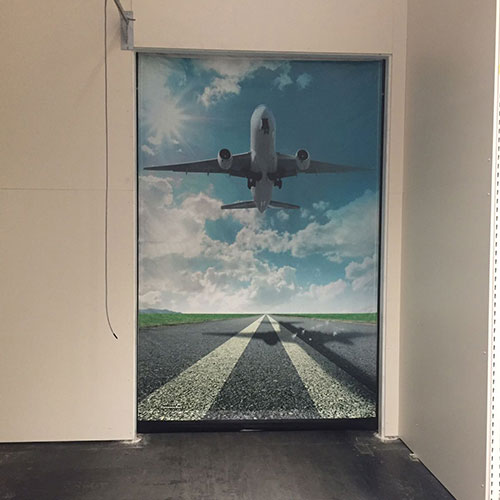

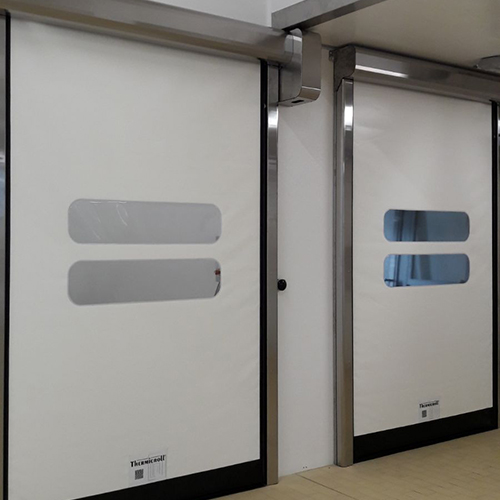

Thermicroll H. S. D. are self-repairing high speed doors. Main feature of these industrial doors is the capability of self-repairing after a collision. Designed for intensive use, these special high speed pvc doors are ideal for fast and continuous transits.
The patented winding system consists of a PVC coat without rigid elements with a steel perimeter structure designed to contain the sliding of the sheet. When constructed with insulated coat, the closure also allows a high degree of insulation.
H. S. D. self-repairing is one of our high-speed pvc doors and is a unique and patented product, designed to ensure a quick, safe and space-saving closure and made only with high quality mechanical and electrical components.
If you want to learn more about the features of Thermicroll industrial shutters, you can see the page dedicated to the advantages of industrial doors.
All our self-repairing doors comply with 12453-12445/EC and UNI EN 13241-1/EC standards and are certified as exclusive and original products, unique in their resistance, practicality, functionality and quality.
In the case of the H.S.D. self-repairing speed doors are not the right solution for you, you can view the other pvc speed door models: S.D. roll-up door, Food Inox, F. U. D. fold-up pack.
For more information on the H. S. D. check the table with the technical characteristics and download the catalogue!
THERMICROLL® H.S.D. TECHNICAL SPECIFICATIONS |
|
PARAMETER | SPECIFICATIONS |
Applications | Internal /External |
Maximum dimensions (L x H) | 8000 x 8000 mm (standard) |
Maximum opening speed | 2 m/s |
Maximum closing speed | 0,8 m/s |
Operating temperature | -20°C +30°C |
Wind load W 3000 x 3000 W 5000 x 5000 W 7000 x 7000 W 8000 x 8000 |
Class 4 3 2 1 |
Structure | STANDARD Galvanized and pre-painted steel in standard colours OPTIONAL Stainless steel structure |
Coat | 1.3mm – 1300 gr/sqm PVC sheet |
Control panel | Inverter |
Power supply | 230 V 10 A – 400 V 8 A |
Frequency | 50/60 Hz |
Limit switch | Encoder |
Emergency Release | STANDARD Rilascio a Manovella OPTIONAL UPS o Contrappeso |
Safety edge (EN 13241) | Anti-crushing sensor |
Durability | 1,000,000,000 opening and closing cycles with regular maintenance every 6 months |
